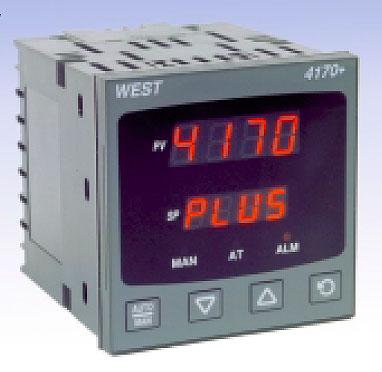

Регулятор 4170+ (Р4170, P4170+) для автоматической задвижки производства компании West Instruments.

Product Category: Single Loop controller
Dimensions and size: 96mm x 96mm x 100mm (HxWxD), 1/4 DIN
Primary Input Type: Universal (TC, RTD, DC linear V, DC linear mA/mV)
Other Inputs: 1 digital or 1 Remote setpoint
Output Type: Relay, DC linear, SSd; Triac, 24V transmitter power supply
Max. Number of Outputs: 5
Control Type: PID with TPSC (VMD), Manual, Alarm, Ramp to setpoint

Power Supply:

  • 100–240V AC 50–60Hz
  • 20-48V AC 50/60Hz
  • 22-65 V DC

Communications: RS-485 serial (Modbus®)
Panel Sealing: IEC IP66 (Behind panel protection is IP20), NEMA4X
Certifications: CE, UL, ULC, CSA
Software Tools: Plus Series Configurator
